3m 110mm Pipe

Specifications

Length: 3m
Outside diameter: 110mm
Inside diameter: 100mm (nominal)
Standards: BRL 2023, BS EN 13476-2, WIS 4-35-01, DCG, SfA7, SfS4
Material: PVC-U, 40% recycled material

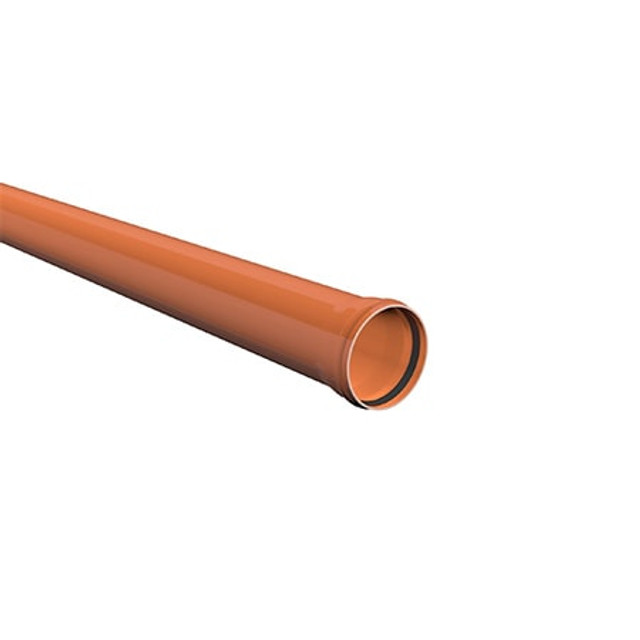

This 3m length of 110mm ULTRA3 SN8-rated single socket underground sewer drainage pipe is designed for use in adoptable or non-adoptable systems. It is suitable for the construction of both foul and surface water networks when used with 100/110mm ULTRA3 Fittings.

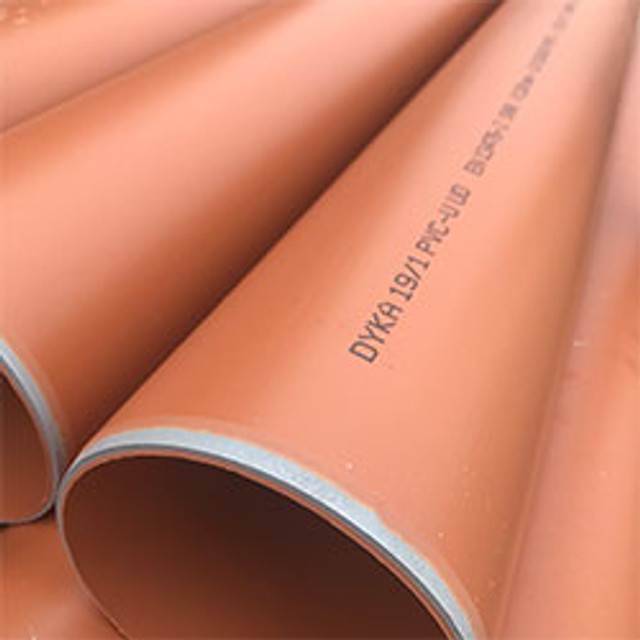

Made in 3 layers, all ULTRA3 pipes consist of an outer and inner layer of virgin material and a centre core made from recycled material. This creates a structured wall pipe, certified (Kitemarked) to BS EN 13476-2 (Structured Wall Piping Systems for PVC-U, PP & PE) and WIS 4-35-01. The inner core is manufactured from recycled material, which gives the pipe a minimum of 40% recycled material by mass and helps to achieve a lower carbon footprint for your project.

This pipe is fully compliant with the relevant guidance documents for adoptable sewers as follows:

• England - Design & Construction Guidance (E 2.22)
• Wales - Sewers for Adoption 7 (E.2.22)
• Scotland - Sewers for Scotland 4 (4.2.22)

It has been tested for high-pressure water jetting up to 280 bar (4060 psi) in accordance with WIS 4-35-01. The smooth internal wall surface helps prevent sediment build-up, meaning that it requires less regular maintenance and cleaning.

Please Note: All images shown are used for illustration purposes only and may differ from the actual product supplied.
