Protek 868 Rebound

protek-868-rebound-basketball-goal-2
protek-868-rebound-basketball-goal-2protek-868-rebound-2protek-868-rebound-closeupprotek-868-rebound-5protek-868-rebound-3_1256248321protek-868-rebound-1protek-868-rebound-basketball-goal-1protek-868-rebound-4protek-868-rebound-singleleaf-gate
P.O.A

Enquire about this product

Please let us know your name.
Please let us know your email address.
Please write a subject for your message.
Please let us know your message.

High Quality Mesh Fencing System For Sports

Designed specifically for sports applications such as football, tennis and hockey

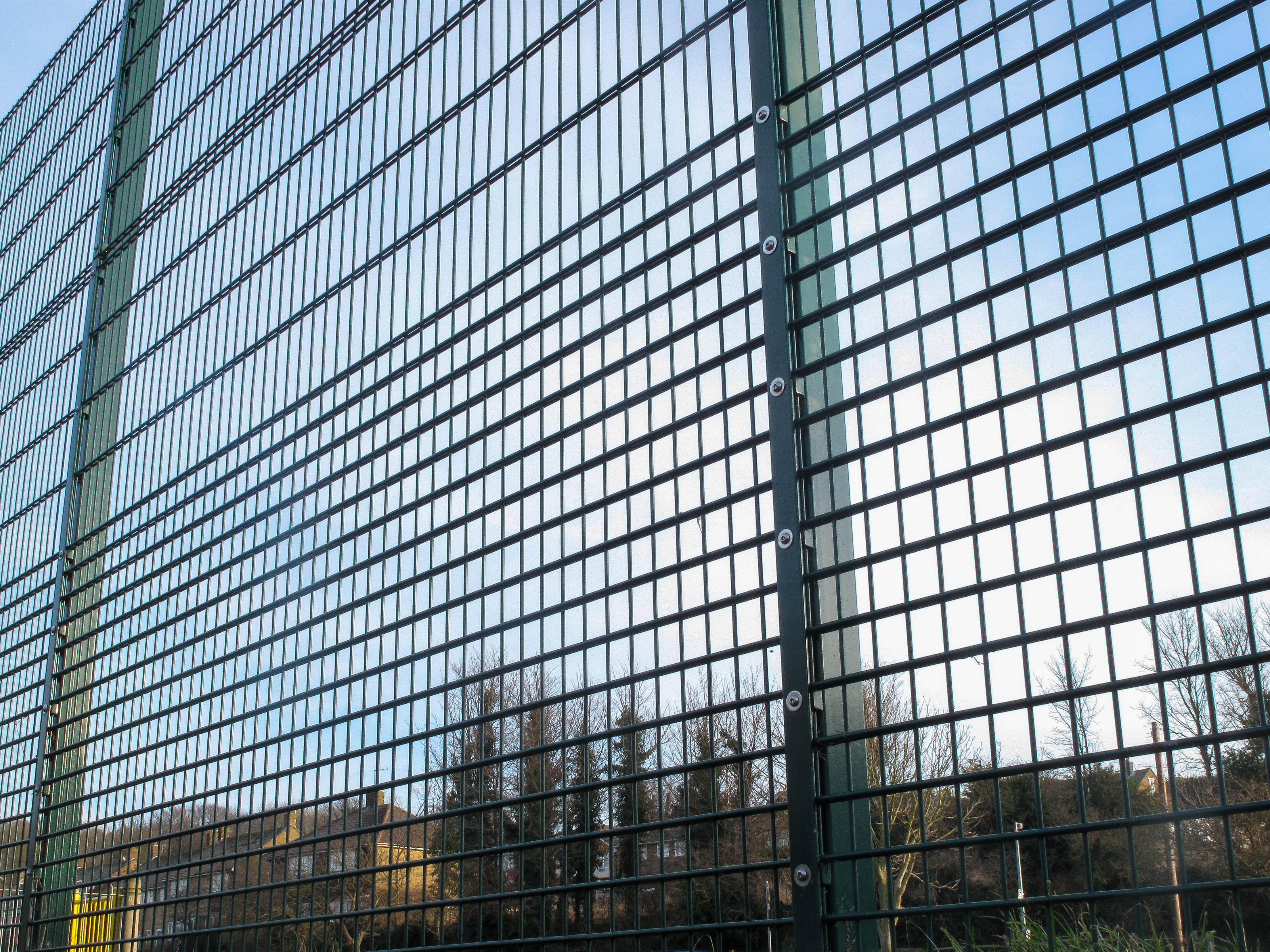

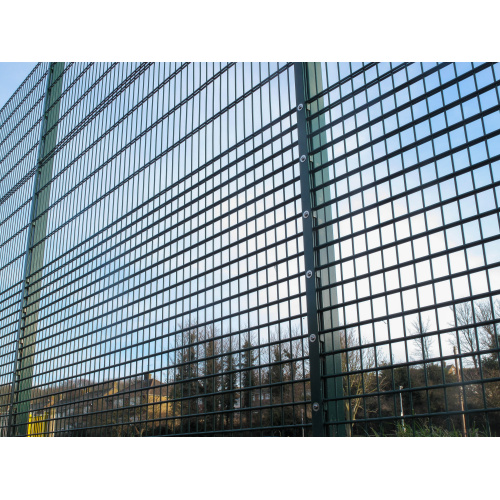

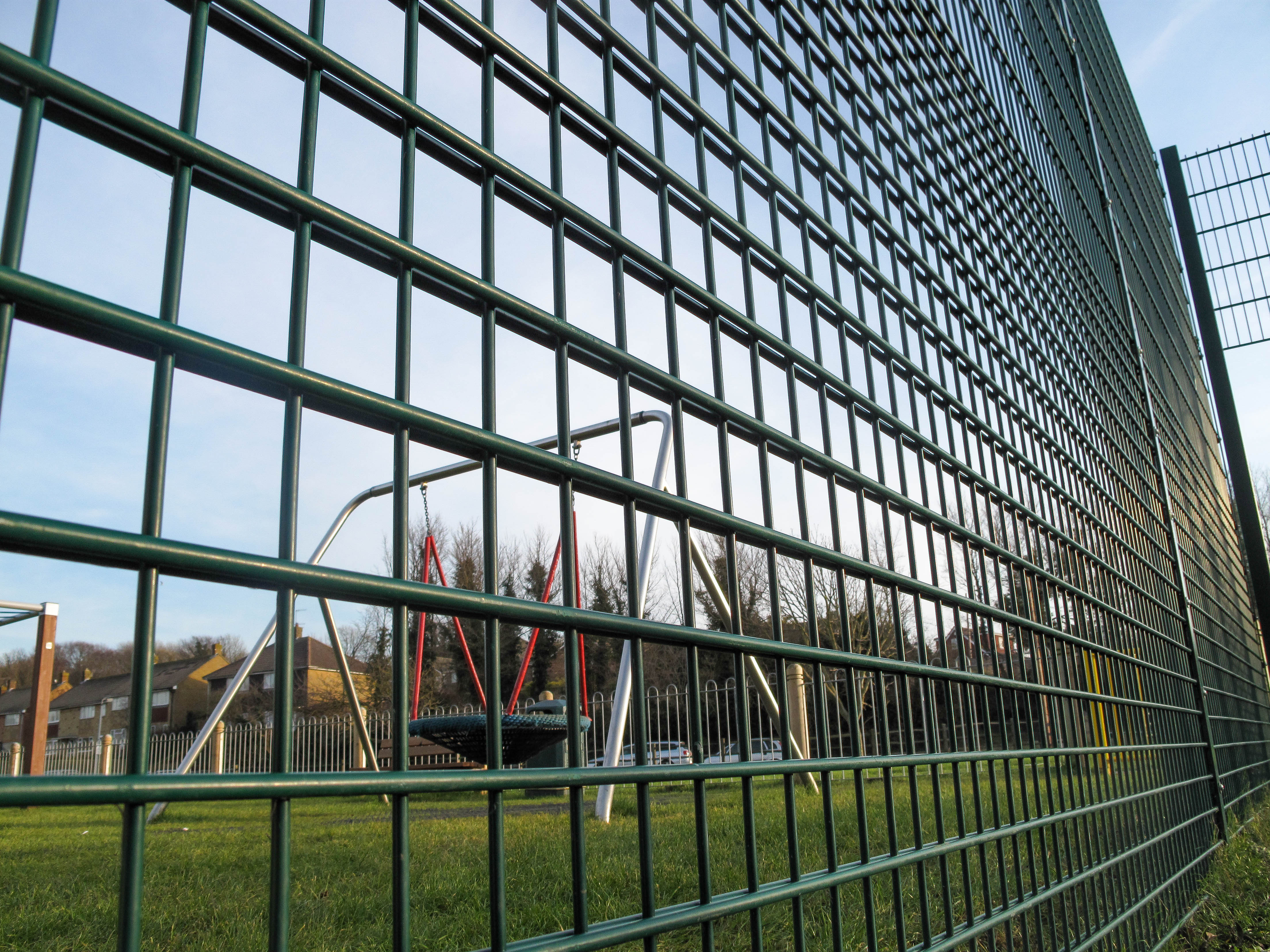

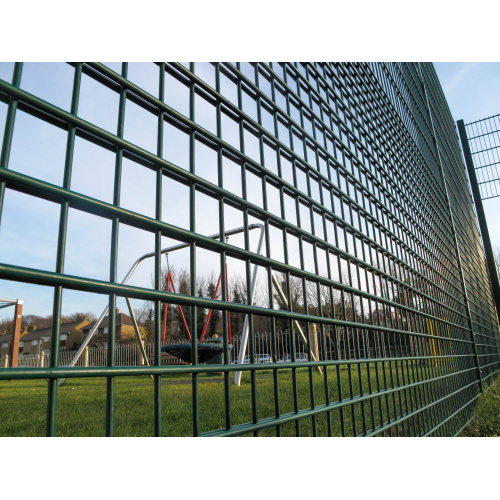

Protek 868 Rebound mesh sports fencing feature panels with tighter spaced wire centres towards the bottom of each section. As balls most commonly strike the lower parts of boundary fencing, the extra wires create an area of increased rebound properties, meaning balls bounce back from the fence rather than stopping dead. The tight spacing between the horizontal and vertical wires can also prevent balls from escaping the arena, including when playing cricket or tennis. Good visibility for spectators is also ensured thanks to the increased spacing of the higher wires.

Ideal For Both School And Multi-Sports Use

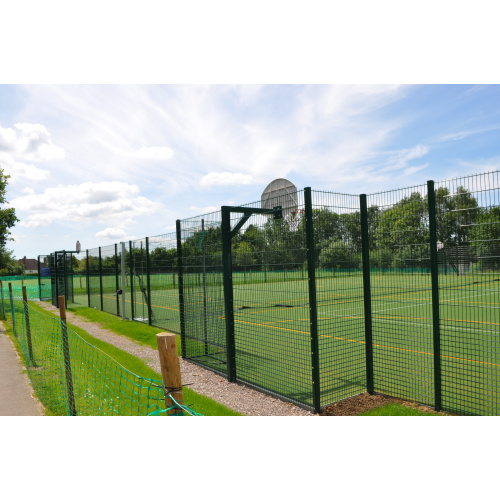

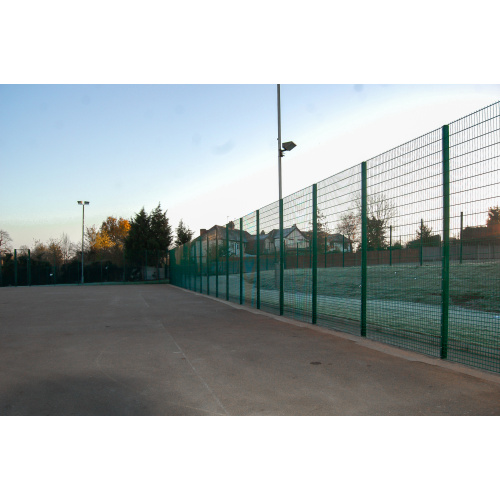

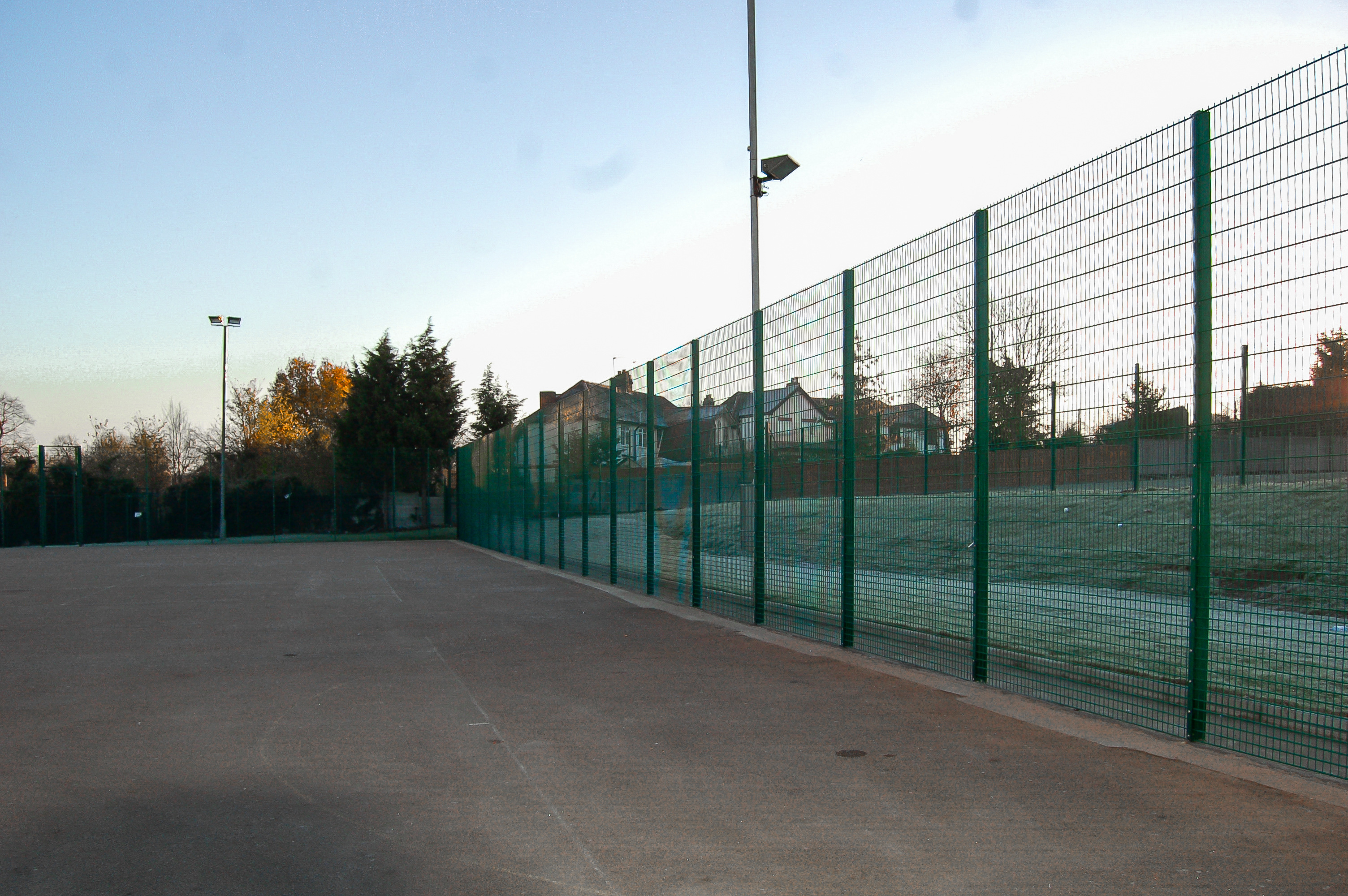

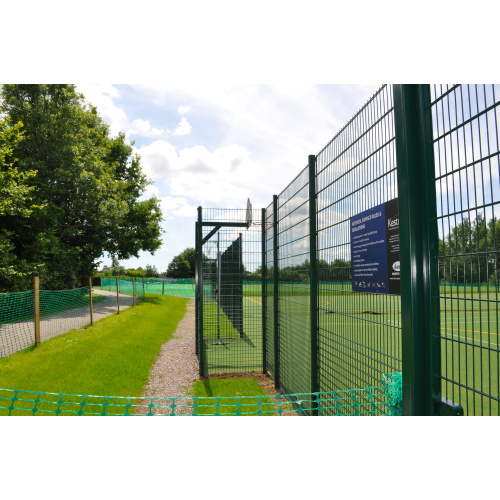

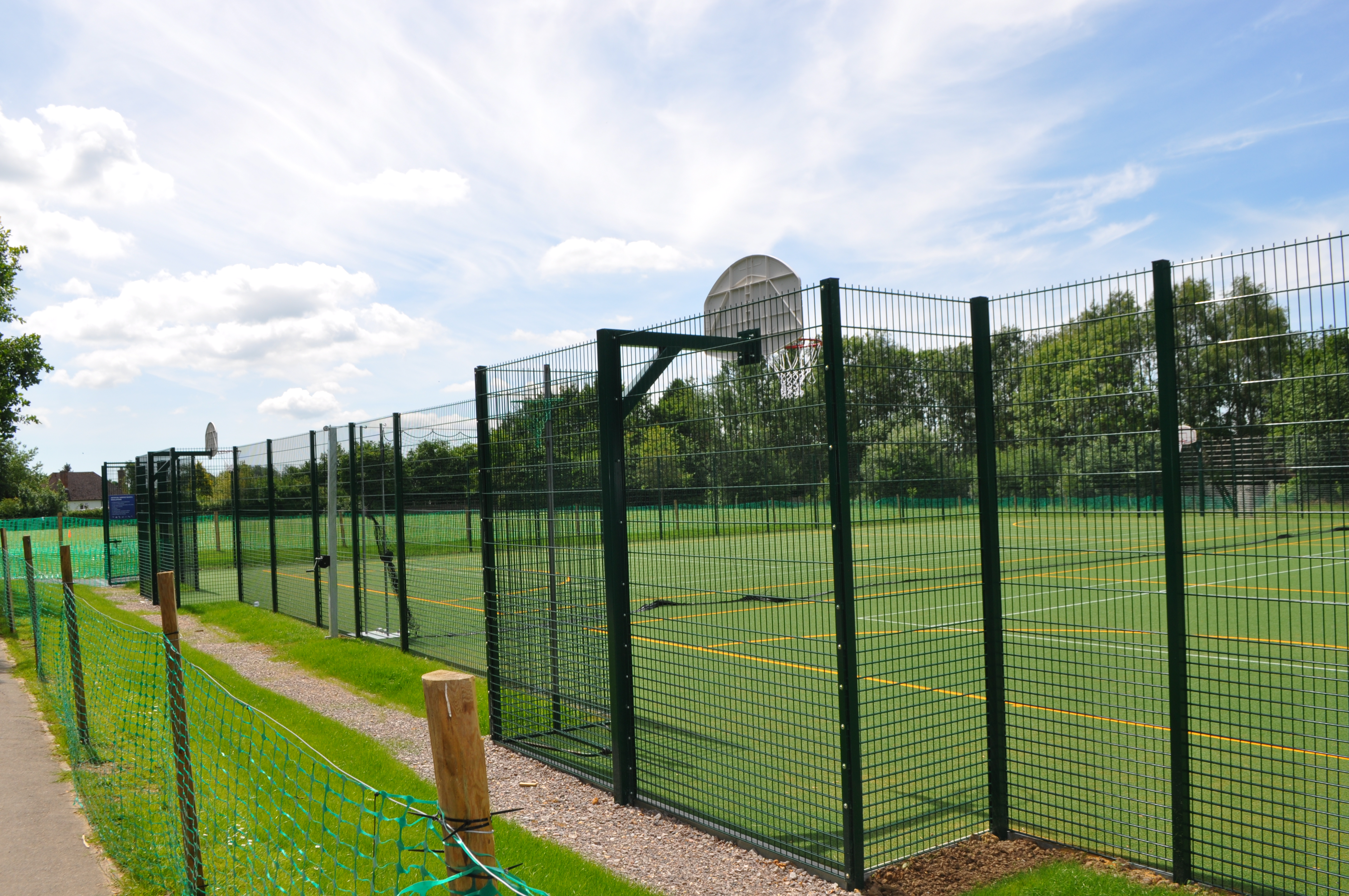

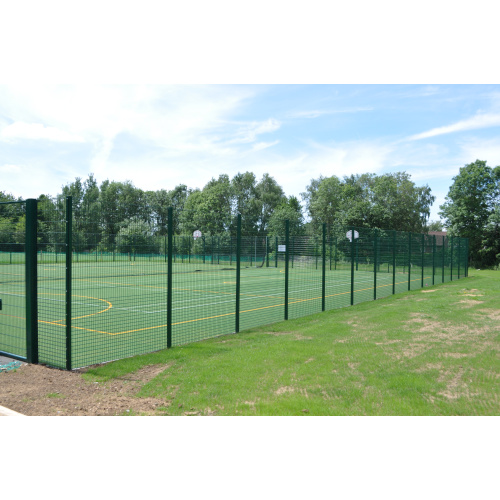

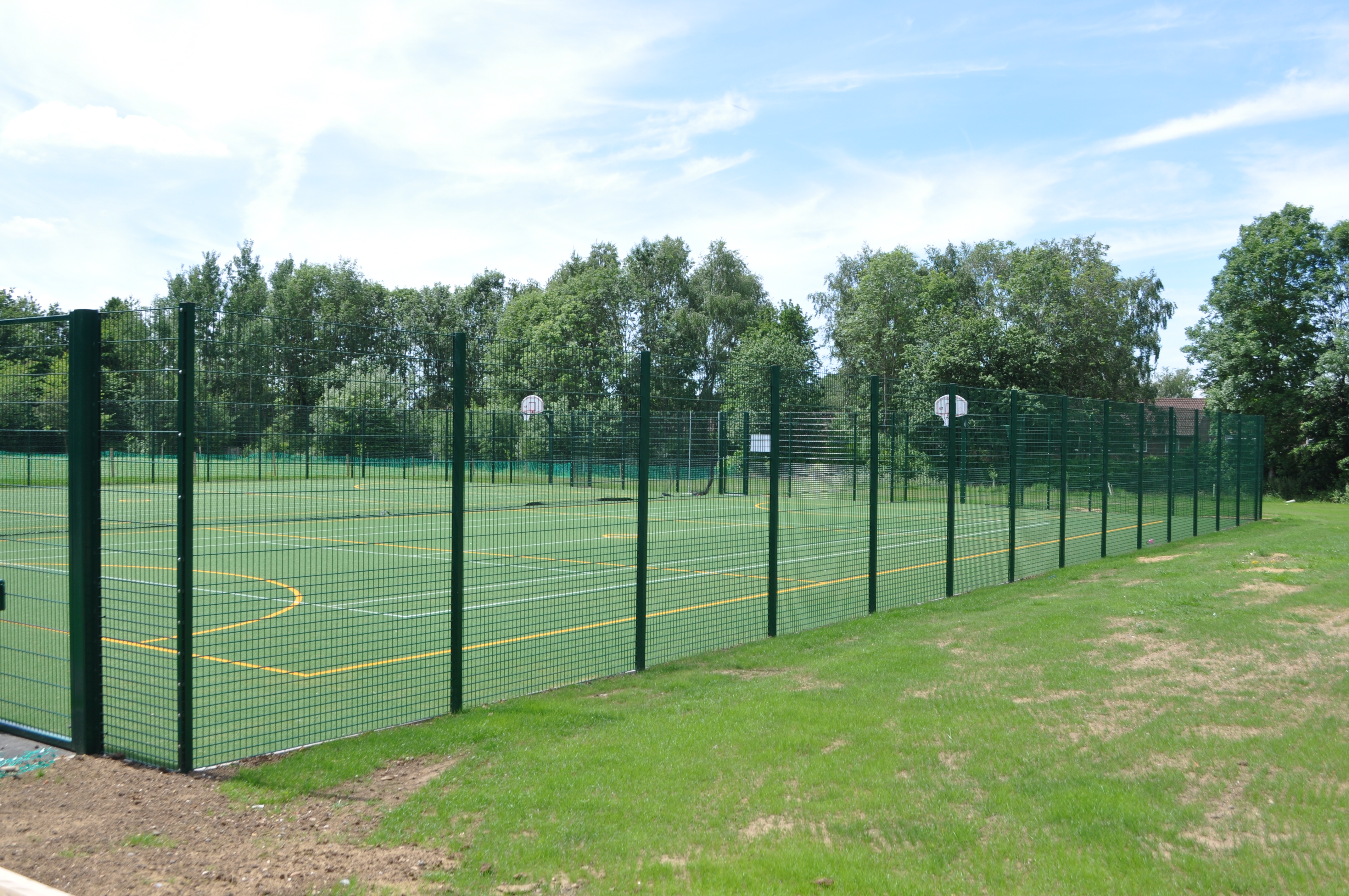

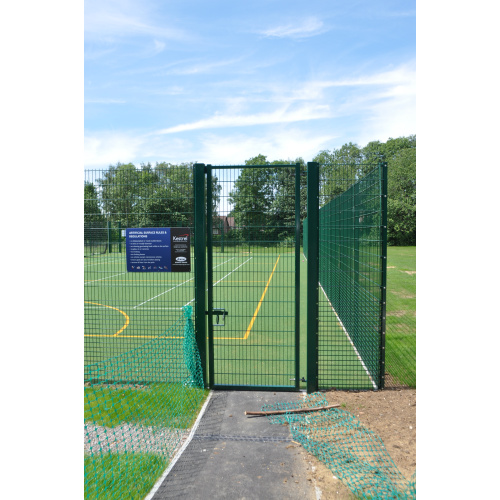

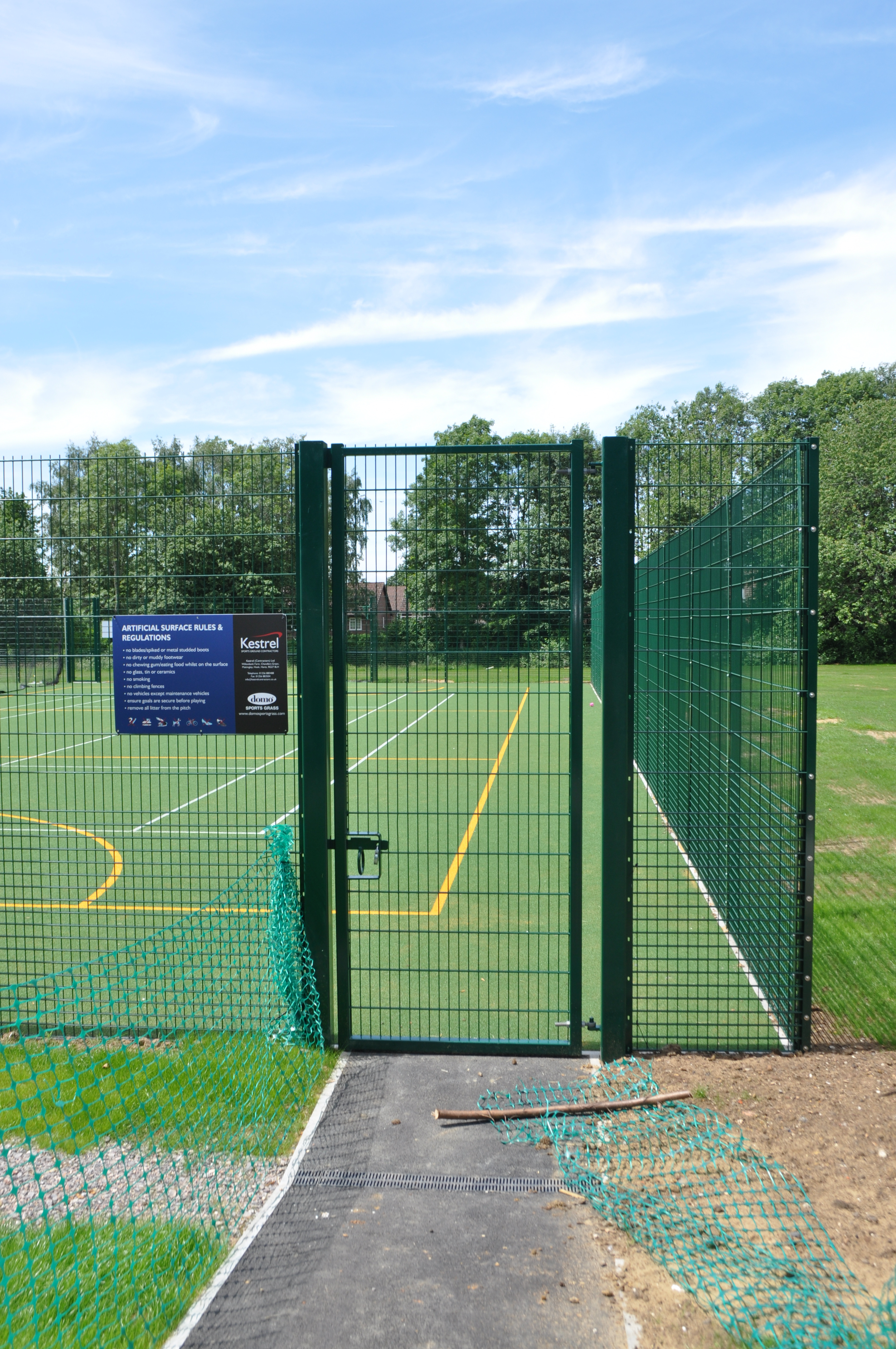

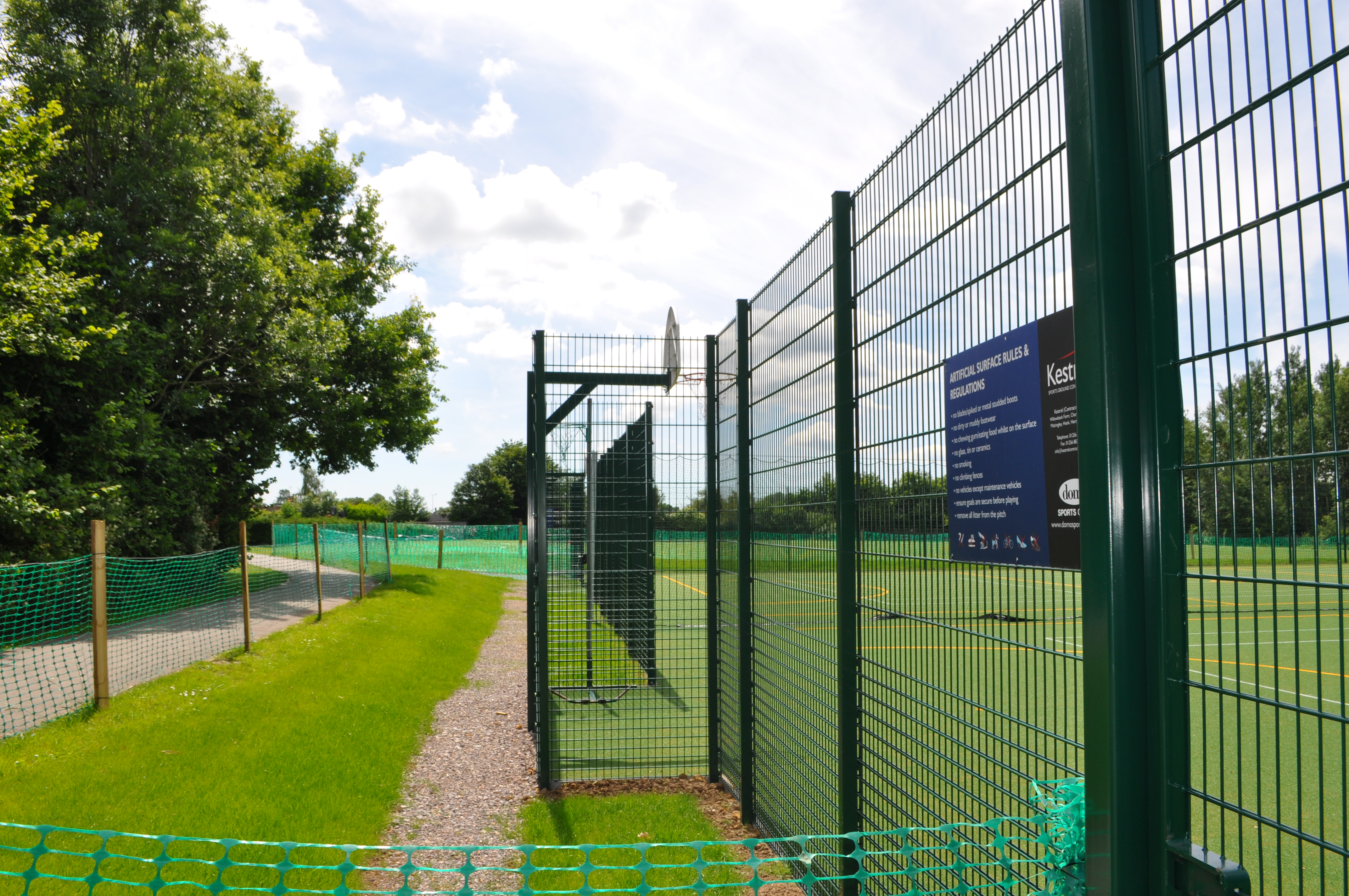

Protek 868 Rebound is the ideal solution when looking for a fence that will provide boundary protection around a school playground or sports field, as well as basketball courts, 5-a-side football pitches and hockey courts. The 868 system can also be seamlessly combined with matching gates and sports accessories such as recessed goals and basketball hoops.

Available In Multiple Heights

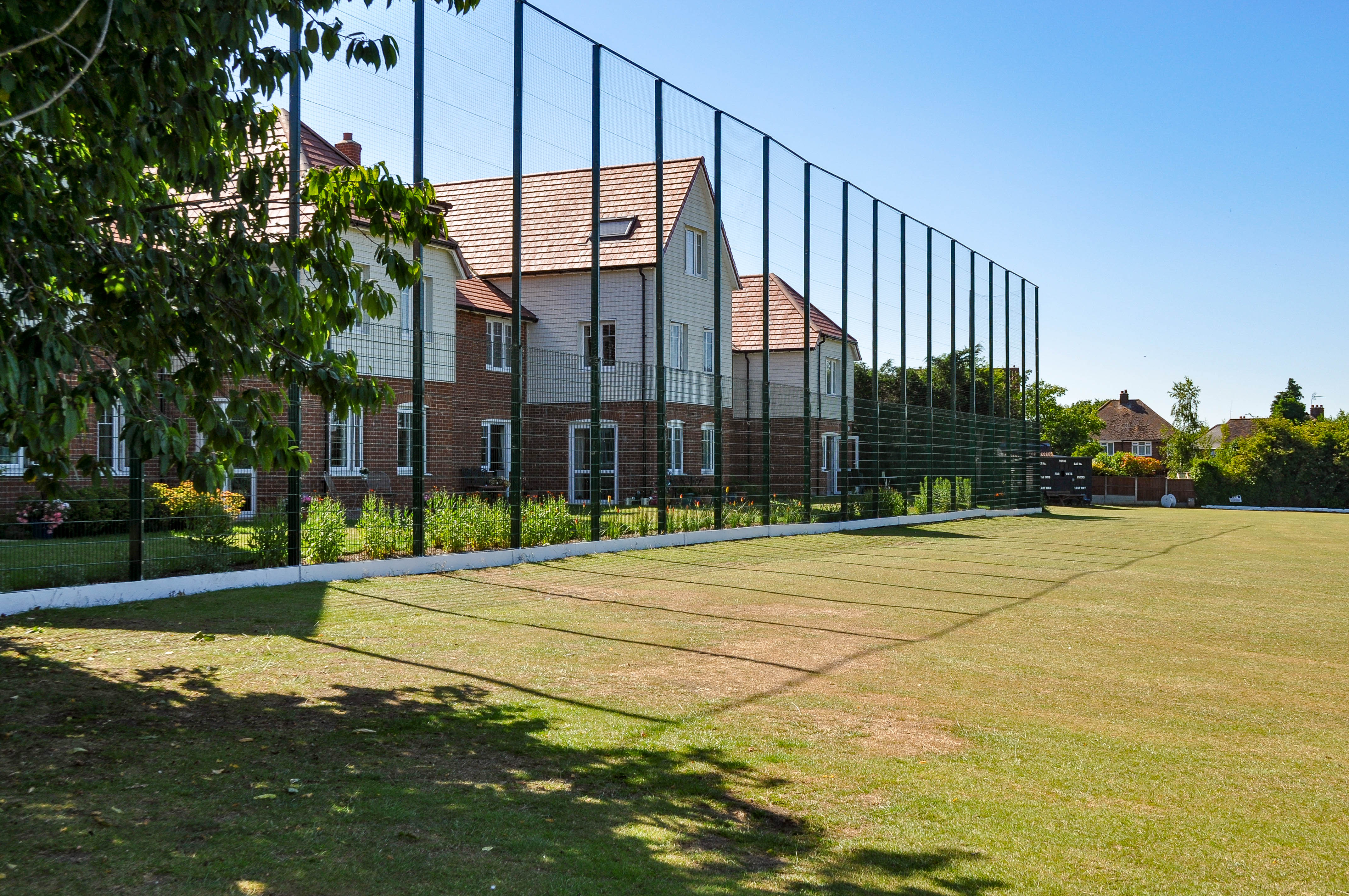

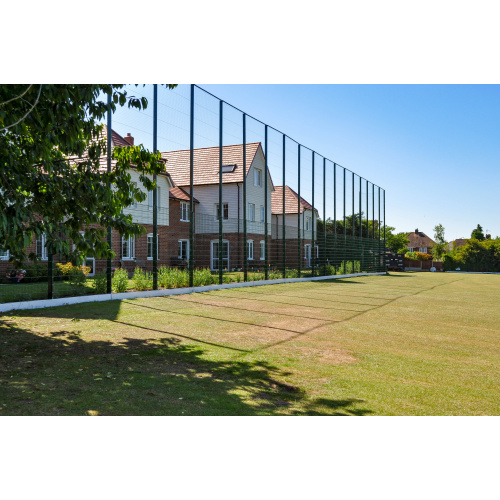

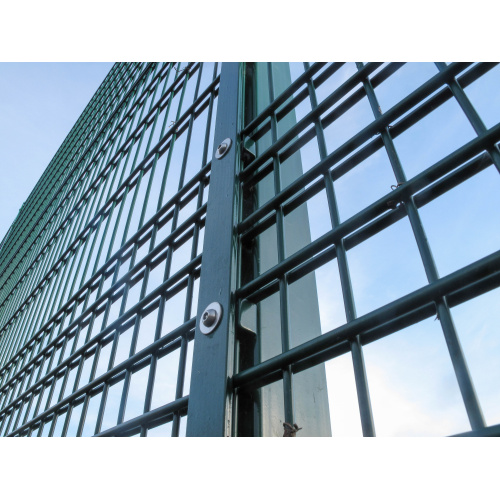

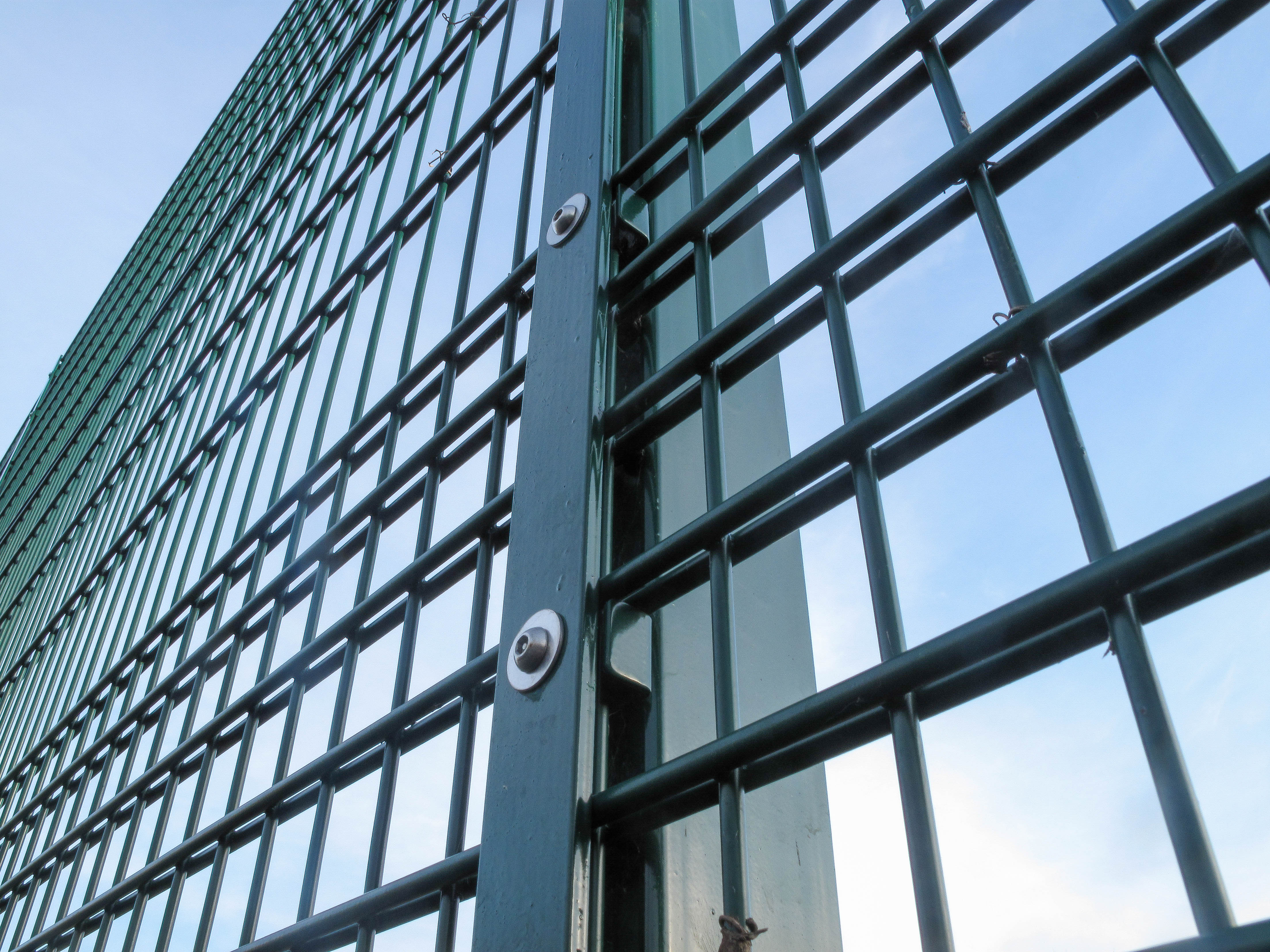

The standard Protek 868 Rebound panel is 2m high. By combining multiple panels, a fence up to 6m high can be constructed using secure clamp bars and made-to-measure posts. 868 refers to the mesh wire size, in this case, 6mm vertical and 8mm horizontal. Easy to install, the mesh panels can also be stepped, helping the fence line to follow the profile of the ground. If you require a greater height than 6m, for example in urban residential areas, these can be specified on request. Contact our expert team to discuss your specific sports fencing needs.

Weather Protected For A Long-Lasting Finish

Each Protek 868 Rebound panel comes supplied in a galvanised finish for long lasting protection from the elements. In addition, a powder coating is also applied, with the standard colour being green. However, we understand that many of our customers like to customise their sports fencing to match their team or brand colours, so we also can powder coat to any RAL colour. 15 year product guarantee also covers all our sports mesh fencing systems.

Specification
Nominal Fence Height (m)Panel Size Height x Width (mm)Post Size (mm) Ends/IntersPost Size (mm) Internal CornerPost Size (mm) External CornerOverall Length of Post (mm)Ends/Inters (1 Clamp)Corners (2 Clamps)
2 2,030 x 2,506 60 x 40 60 x 40 60 x 60 2,700 9 18
2.4** 2,400 x 2,506 60 x 40 60 x 40 60 x 40 3,200 10 20
3.0 3,030 x 2,506 80 x 40 80 x 40 80 x 80 3,900 12 24
3.1* 3,060 x 2,506 80 x 40 80 x 40 80 x 80 3,900 13 26
3.6* 3,660 x 2,506 80 x 40 80 x 40 80 x 80 4,600 15 30
4.0* 4,060 x 2,506 100 x 50 100 x 50 80 x 80 5,100 16 32
4.5* 4,460 x 2,506 100 x 50 100 x 50 80 x 80 5,500 21 42
5.0* 5,060 x 2,506 100 x 50 100 x 50 80 x 80 6,200 21 42
6.0* 6,080 x 2,506 120 x 60 120 x 60 100 x 100 7,500 24 48
