Protek 656 Clip

protek-656-clip-4_1520952071
protek-656-clip-4_1520952071protek-656-clip-meshprotek-656-clip-1protek-656-clip-2protek-656-clip-3protek-656-clip-5
P.O.A

Enquire about this product

Please let us know your name.
Please let us know your email address.
Please write a subject for your message.
Please let us know your message.

Protek 656 Clip – Twin Wire Security Fencing – Clip System

The twin-wire welded mesh design of the Protek 656 Clip system provides security barrier that is stronger than single wire mesh systems.

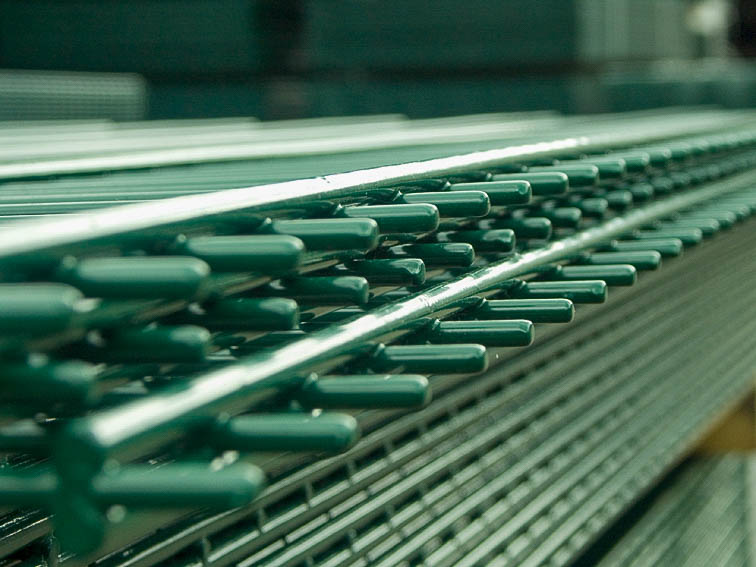

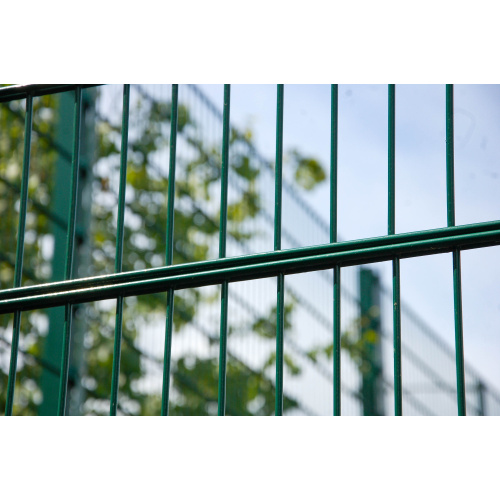

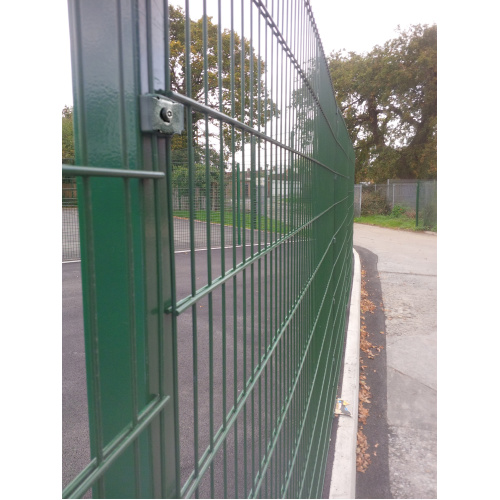

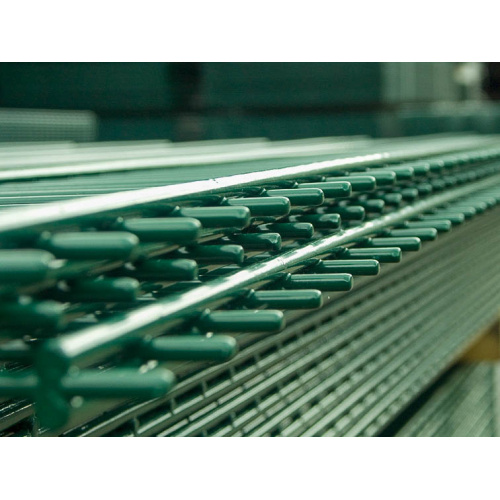

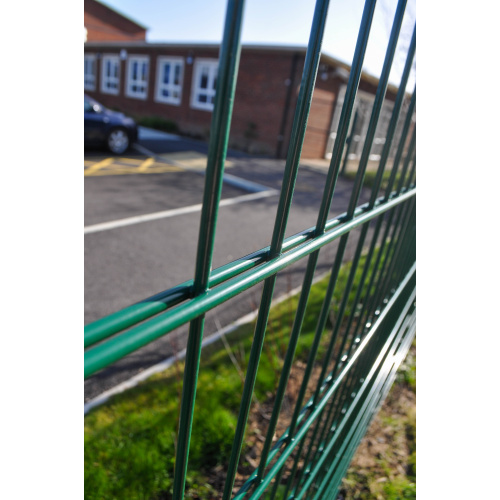

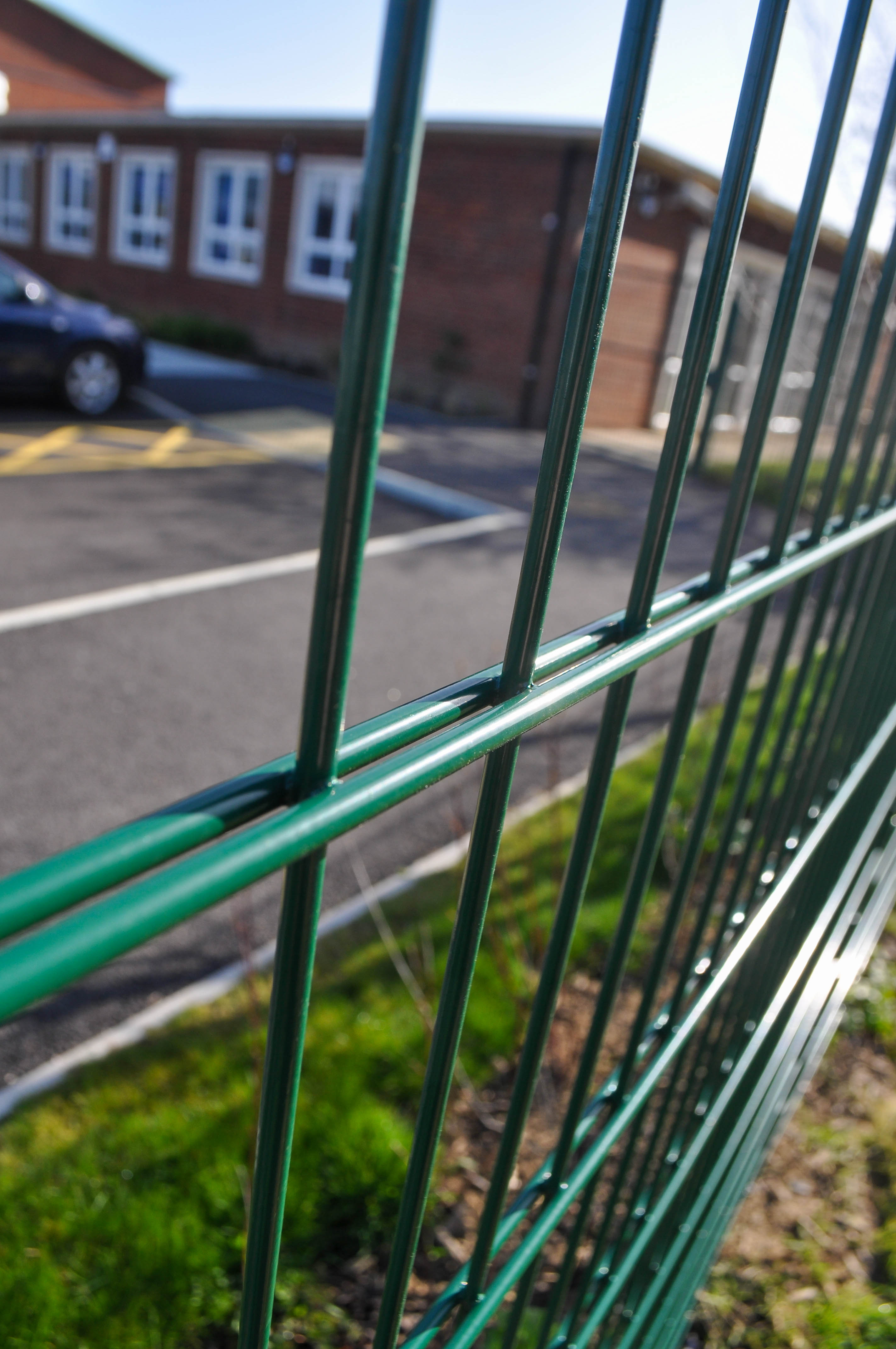

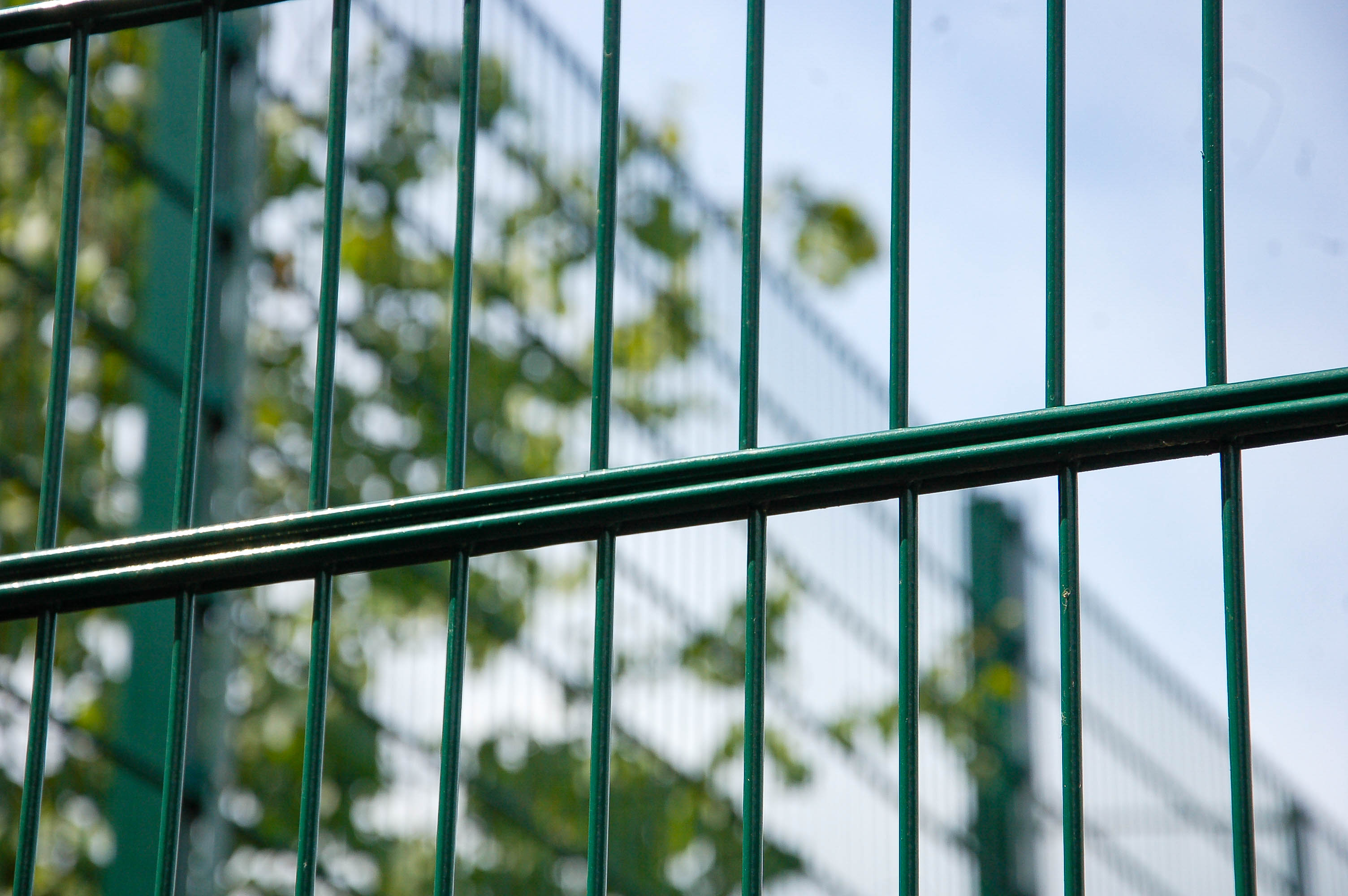

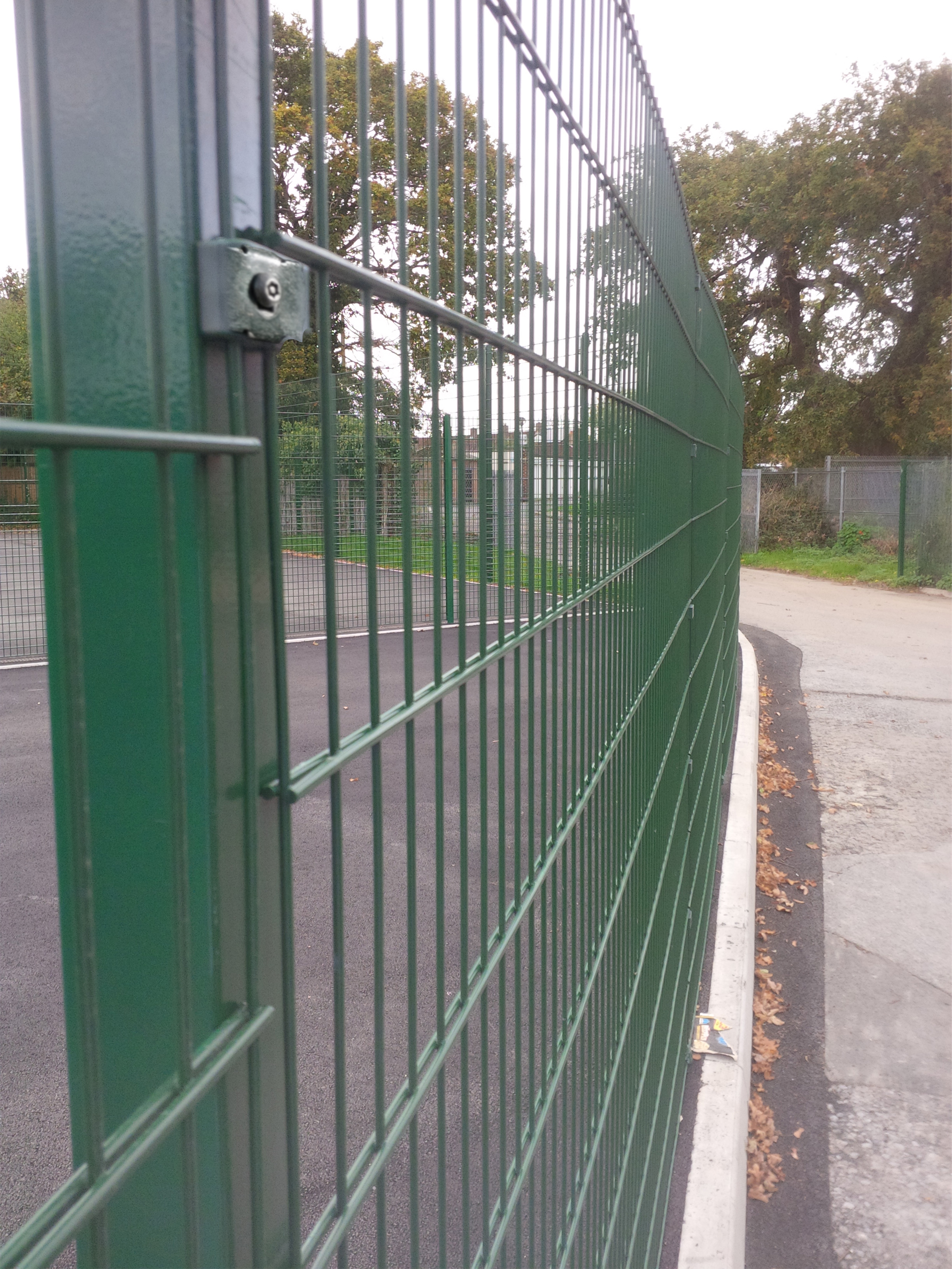

Unlike the Protek 1000 & 2000 system, Protek 656 mesh fencing panels use 6mm diameter horizontal wires (rather than single wire) either side of the vertical wire. This deeper mesh construction provides the fence line with increased strength and rigidity, as well as making it harder for intruders to cut through or climb over. As a clip system, adjoining Protek panels are held together with metal clips that are then pinned into posts using pre-drilled holes.

Available In Heights Up To 3m

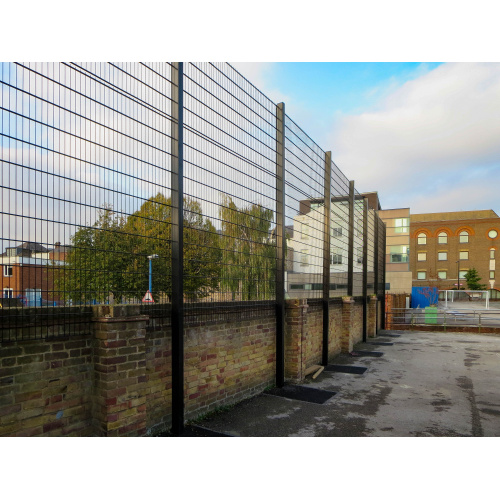

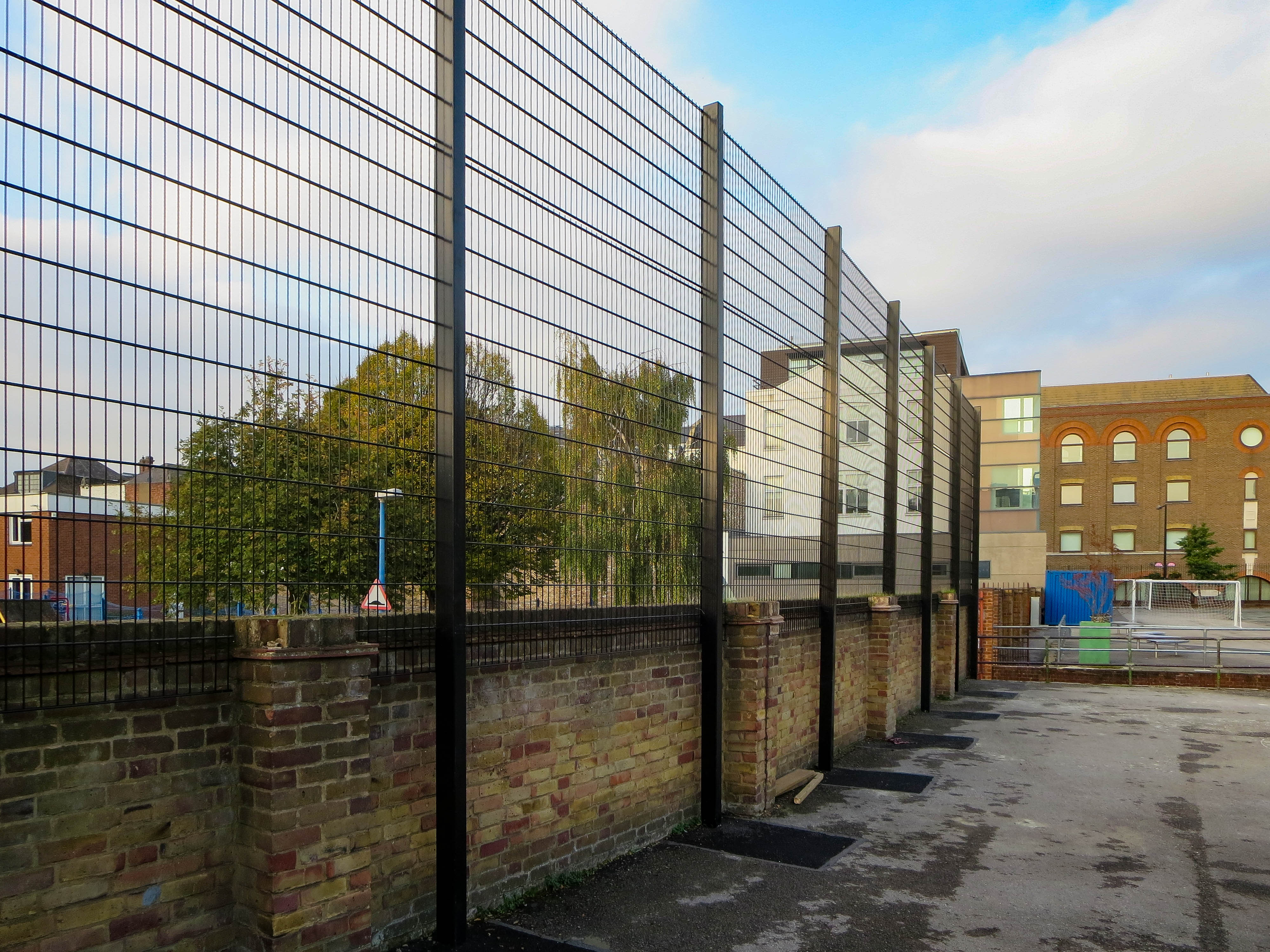

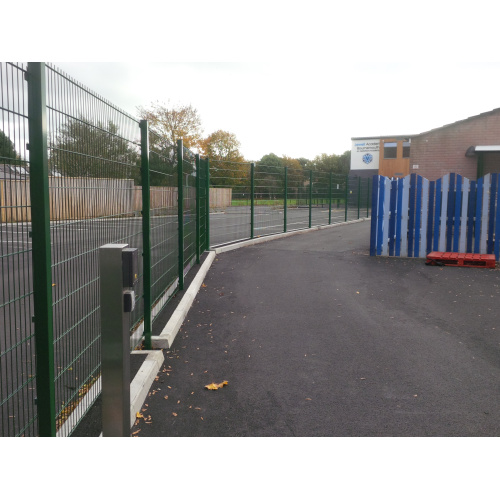

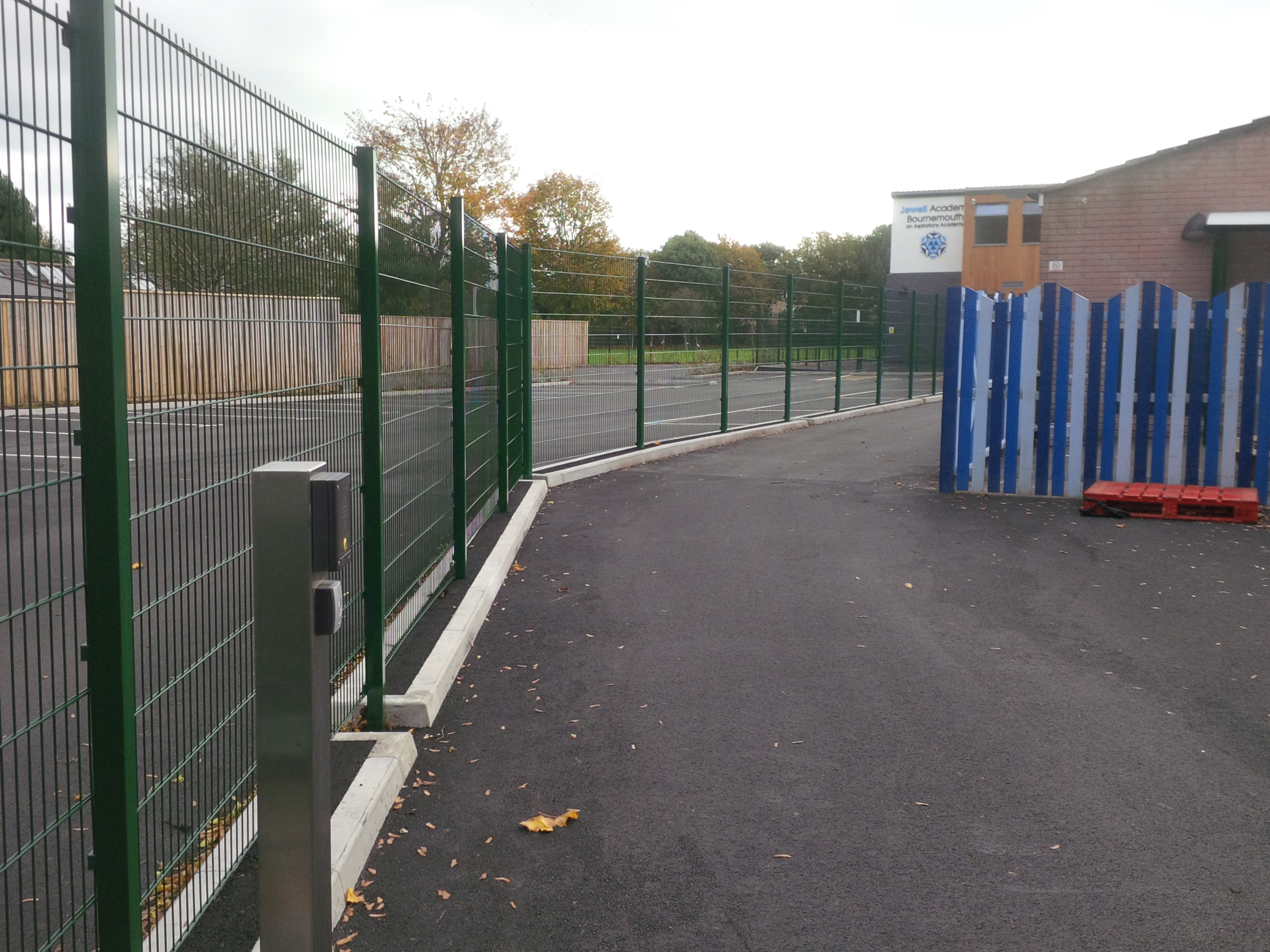

The Protek 656 Clip panels are available from a height of 1m, up to a maximum of 3m for each single panel. Supporting posts are available in dig-in or bolt-down (postcrete mix available separately for dig-in posts). Bolt-down posts are suitable for anchoring into concrete, ideal for use around schools, colleges and retail parks. Protek twin-wire systems are easy to install, and individual panels can be stepped to allow the fence line to follow the contours of the ground.

Specification
Nominal Fence Height (m)Panel Size Height x Width (mm)Post Centres (mm)Overall Length of Post (mm)Post Size (mm)No. of Clips Per PostNo. of Clips Per Corner
1.2 1,230 x 2,506 2,520 1,800 60 x 60 4 8
1.8 1,830 x 2,506 2,520 2,400 60 x 60 5 10
2.0 2,030 x 2,506 2,520 2,600 60 x 60 6 12
2.4 2,430 x 2,506 2,520 3,100 60 x 60 7 14
3.0 3,030 x 2,506 2,520 3,750 60 x 60 8 16
